Main performance and structural features

1.Three servo motors, PLC control, bag length can be set and cut immediately, no need to adjust the idle run, one-step completion, saving time and film.

2.The human-machine interface is convenient and fast for parameter setting. It can sense the automatic packaging of the product and automatically pause and wait when there is no product.

3.Self-diagnosis function for faults, with clear fault display at a glance.

4.High-sensitivity photoelectric eye color mark tracking and digital input of sealing and cutting positions make the sealing and cutting positions more accurate.

5. Temperature-independent PID control, better suited to various packaging materials.

6.Positioning stop function, no sticking to the knife, no waste of coating film.

7.The transmission system is simple, making operation more reliable and maintenance more convenient.

8.All controls are implemented by software, facilitating functional adjustments and technological upgrades, and never falling behind.

Scope of application

It is suitable for packaging various regular objects in industries such as food, hardware accessories, medical supplies, daily necessities, stationery, toys, hotel supplies, electronic products, etc.

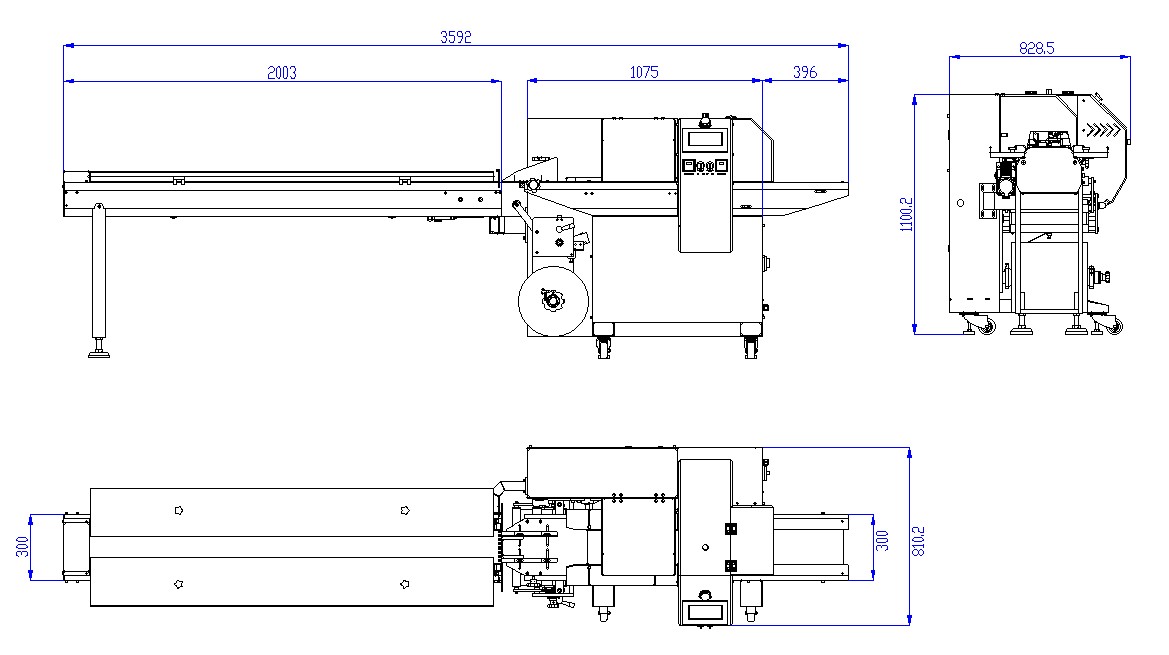

Product dimension drawing
